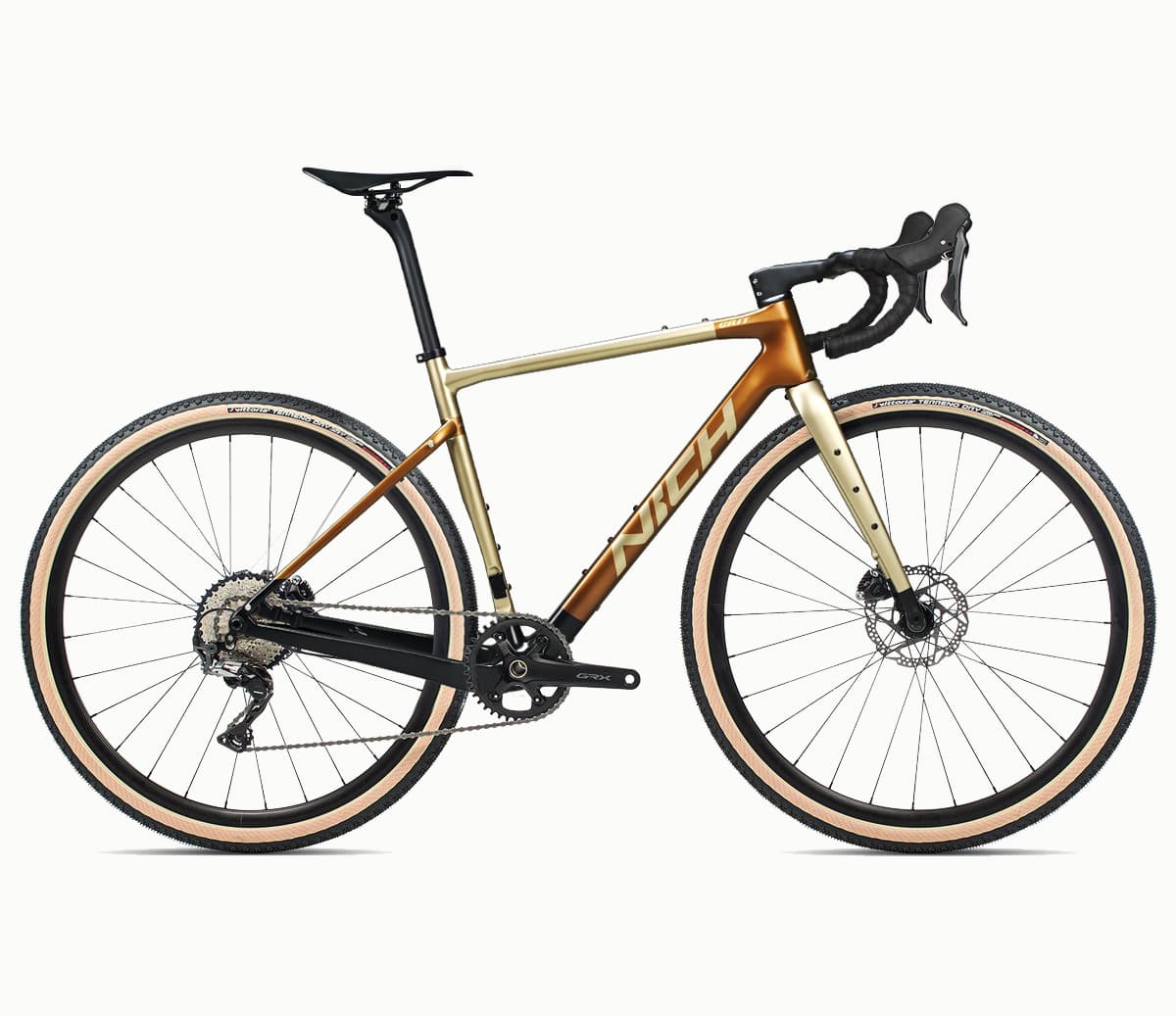

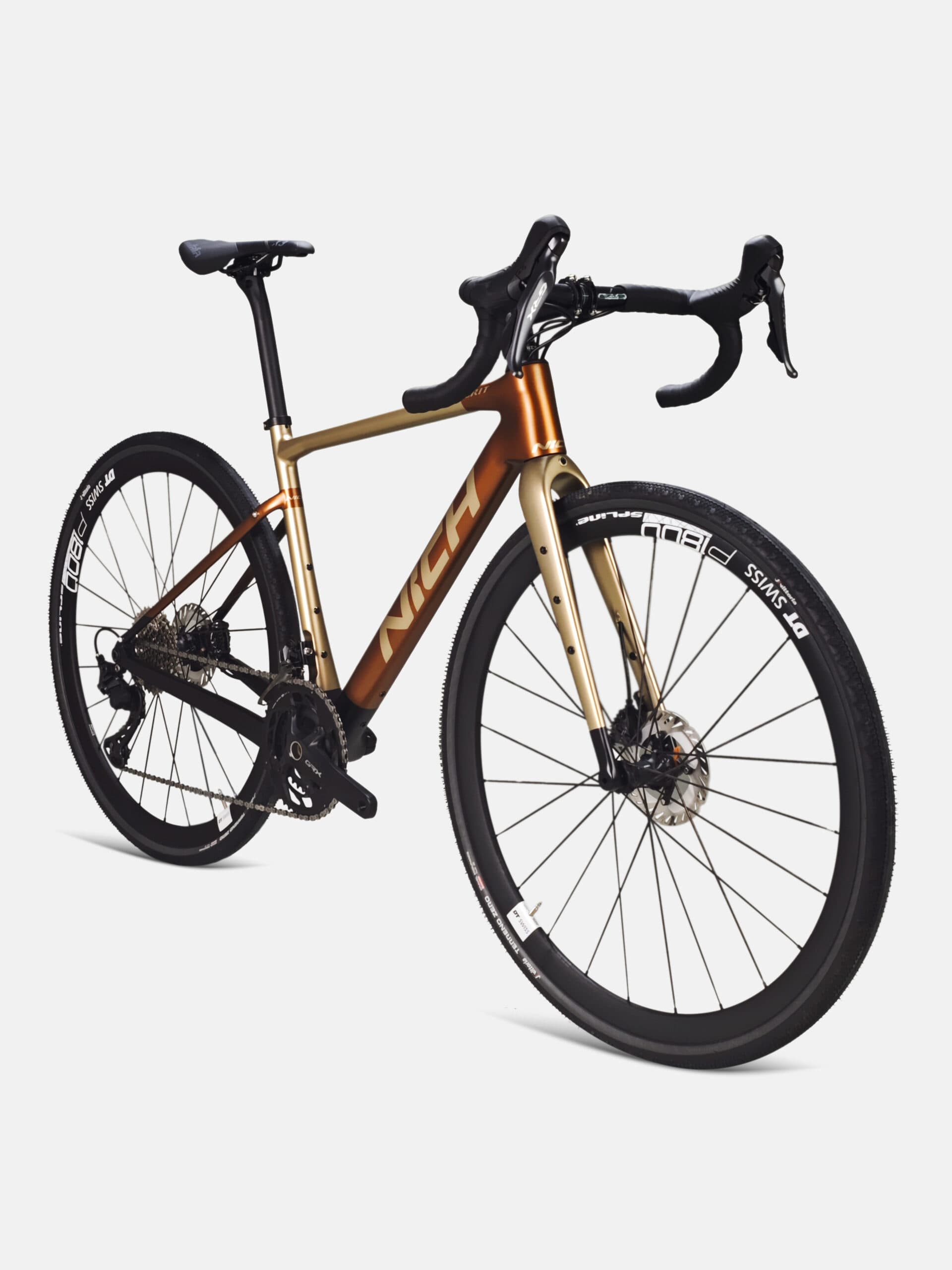

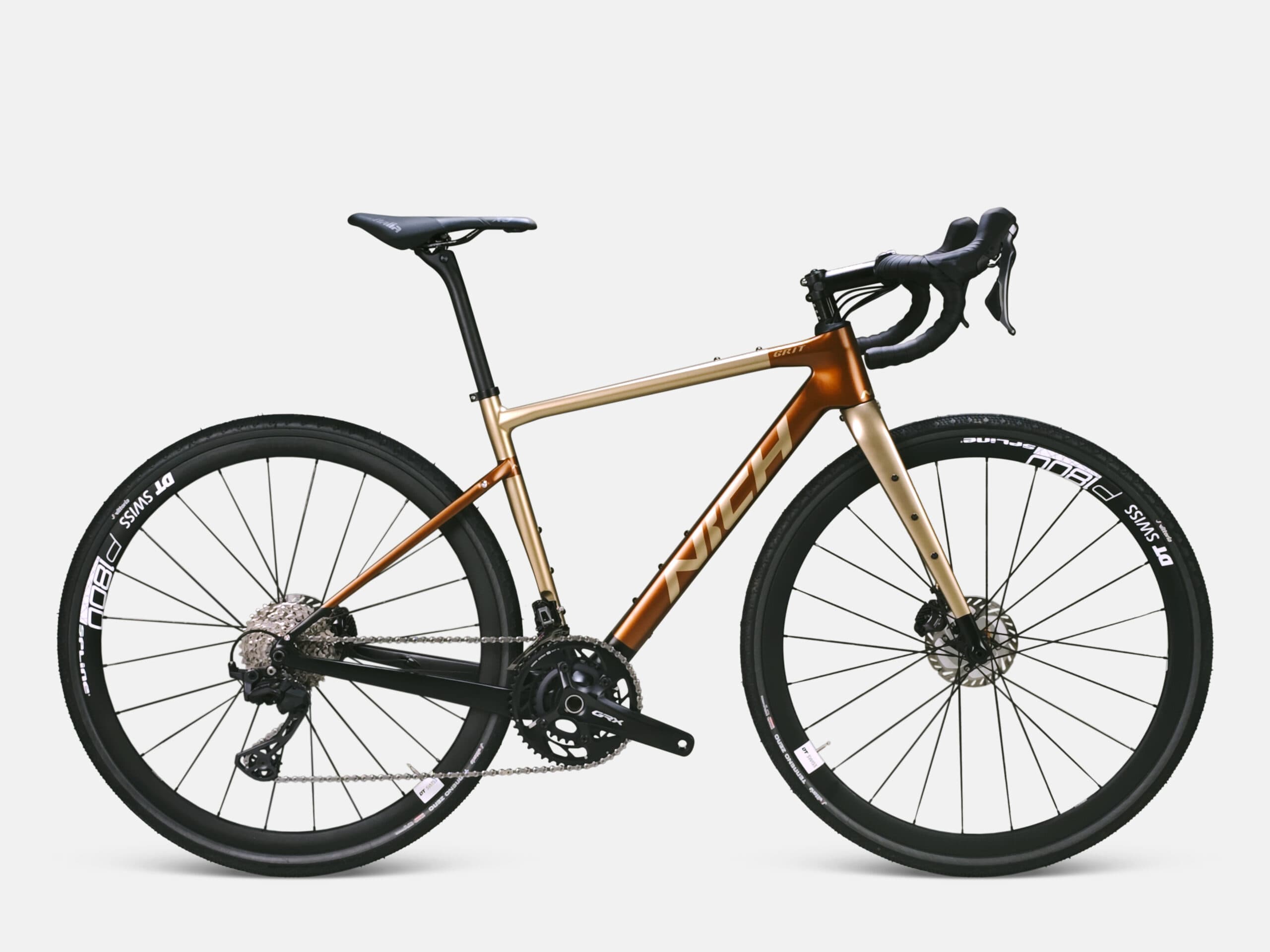

NICH 2025 GRIT Gravel Bike

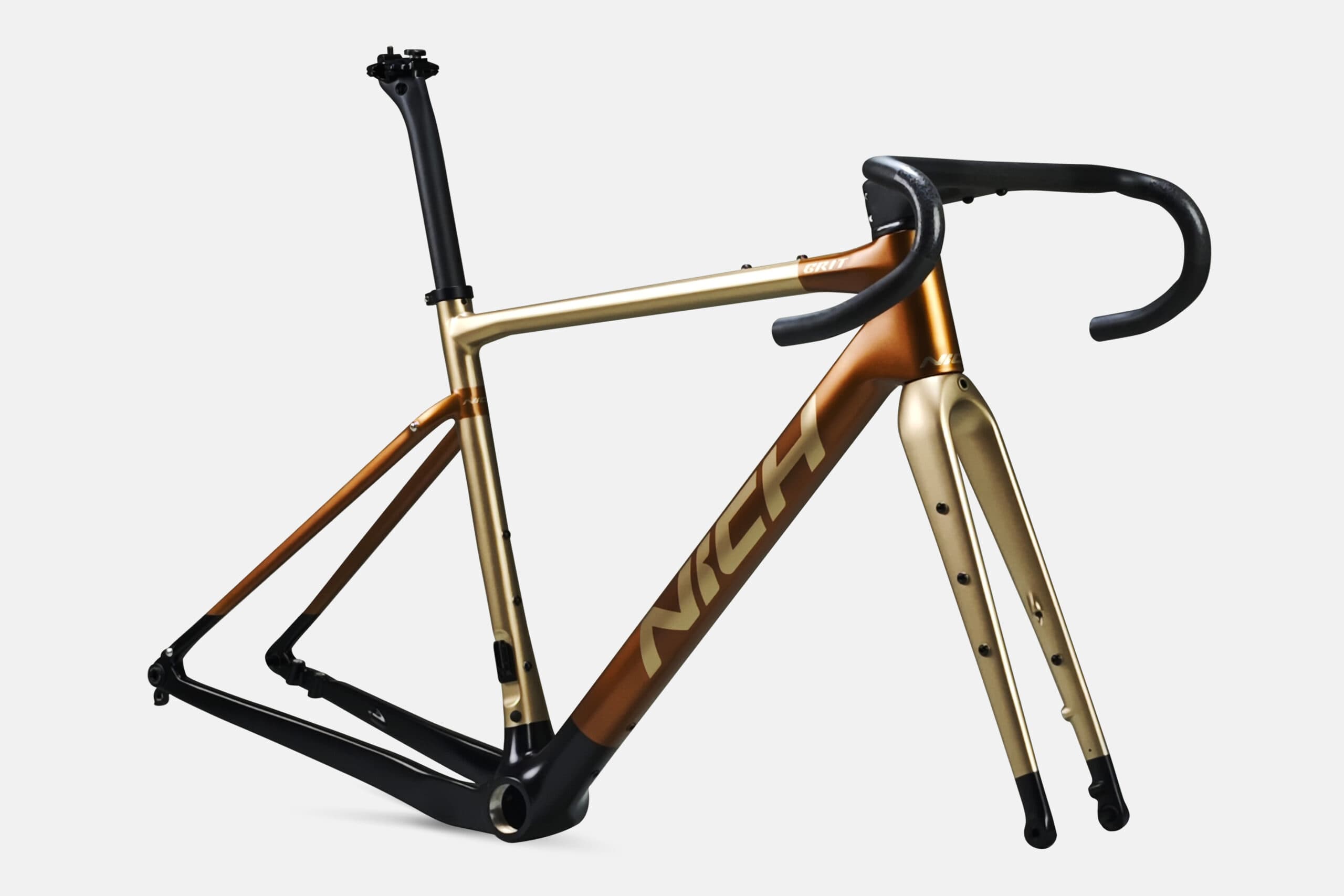

The NICH Grit is a carbon gravel bike built with Torayca T800 carbon fibre at 935g (Size S). Features T47 bottom bracket, UDH system, and tyre clearance up to 50mm with full rack and fender mounts. Direct-to-consumer in New Zealand with a lifetime frame warranty. Contact us for pricing.

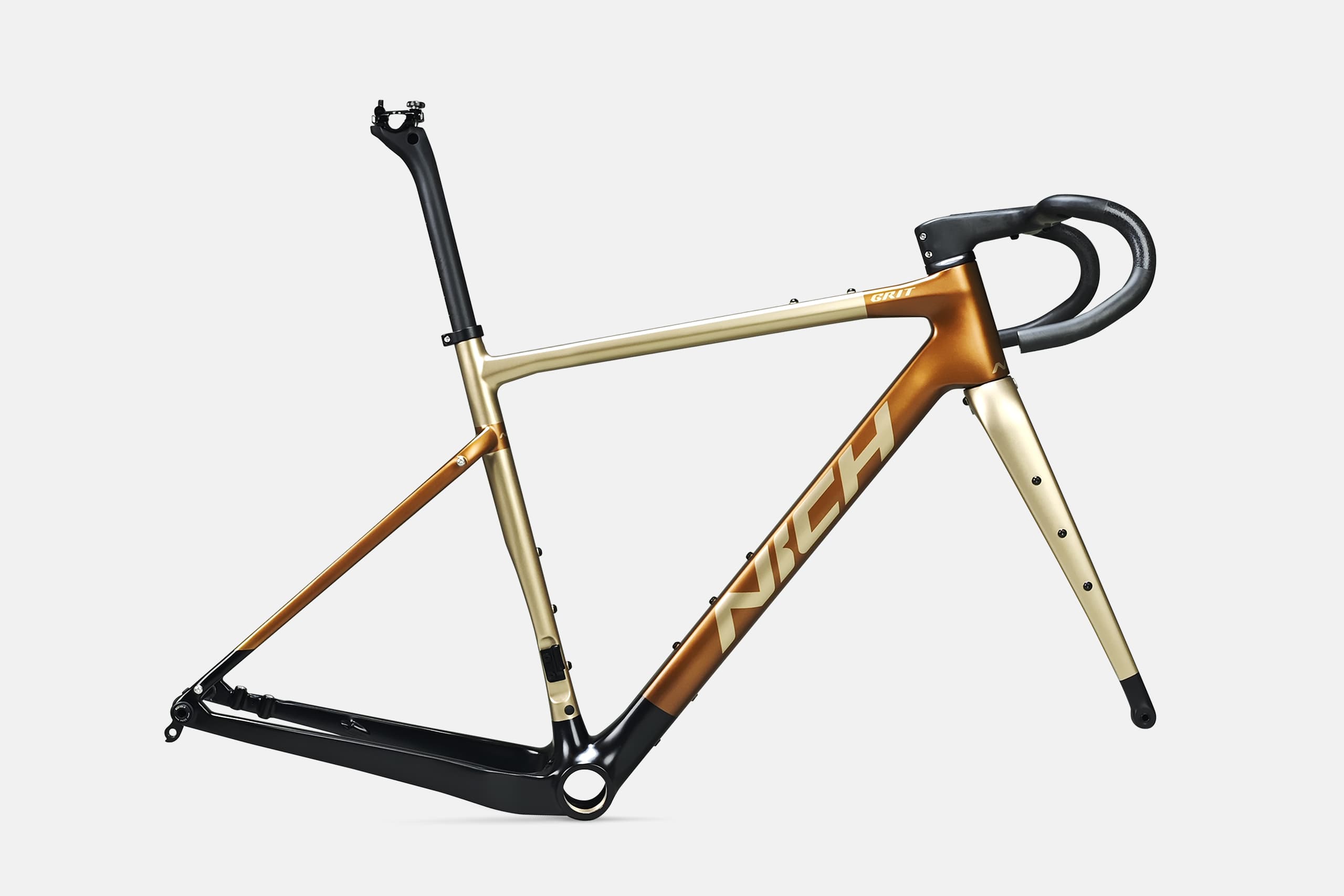

Why Gravel?
Gravel is not about speed alone. It's about endurance, exploration, and the pure joy of riding beyond the limits. Nich : Grit was created with this spirit — the strength to endure, the courage to explore, and the will to keep moving forward. The name "Grit" itself reflects determination and toughness, a perfect symbol for a bike built to conquer dirt, gravel, and endless adventure.
Design & Engineering
Every detail of the Nich Grit was crafted with balance in mind — stability on gravel, agility on tarmac, and confidence everywhere in between.

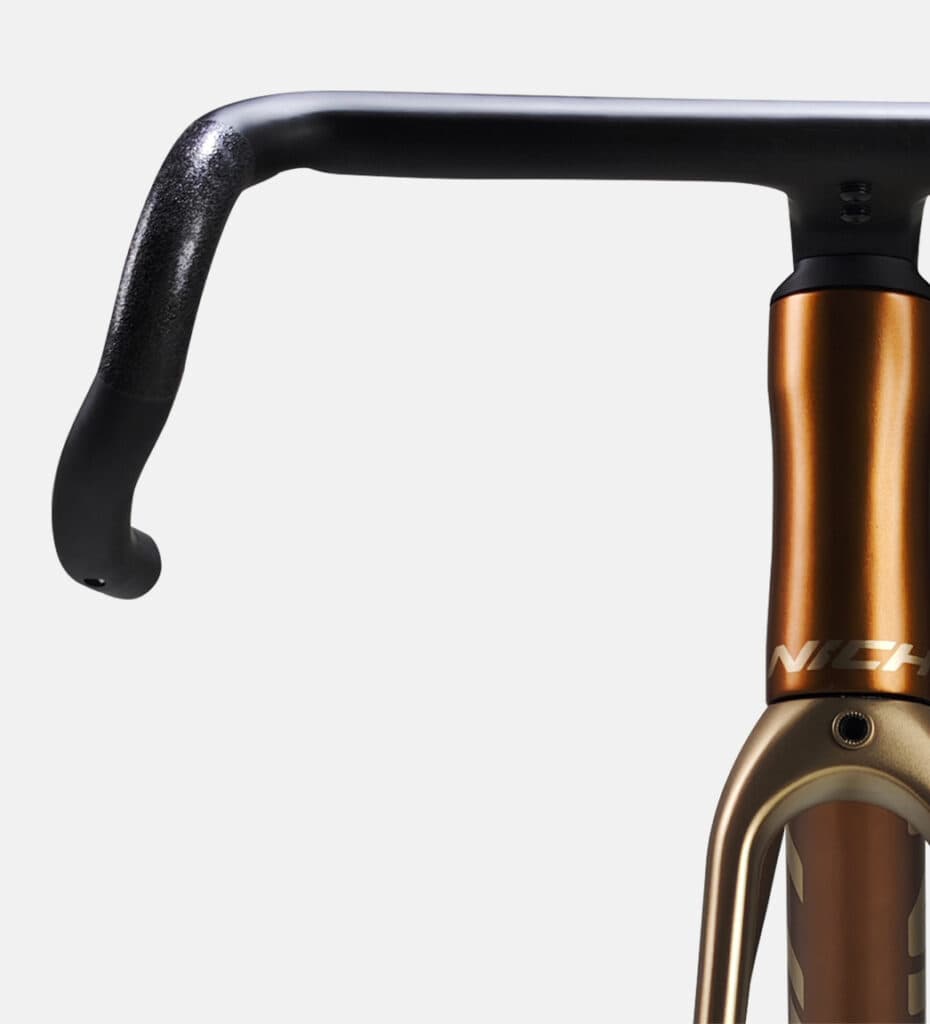

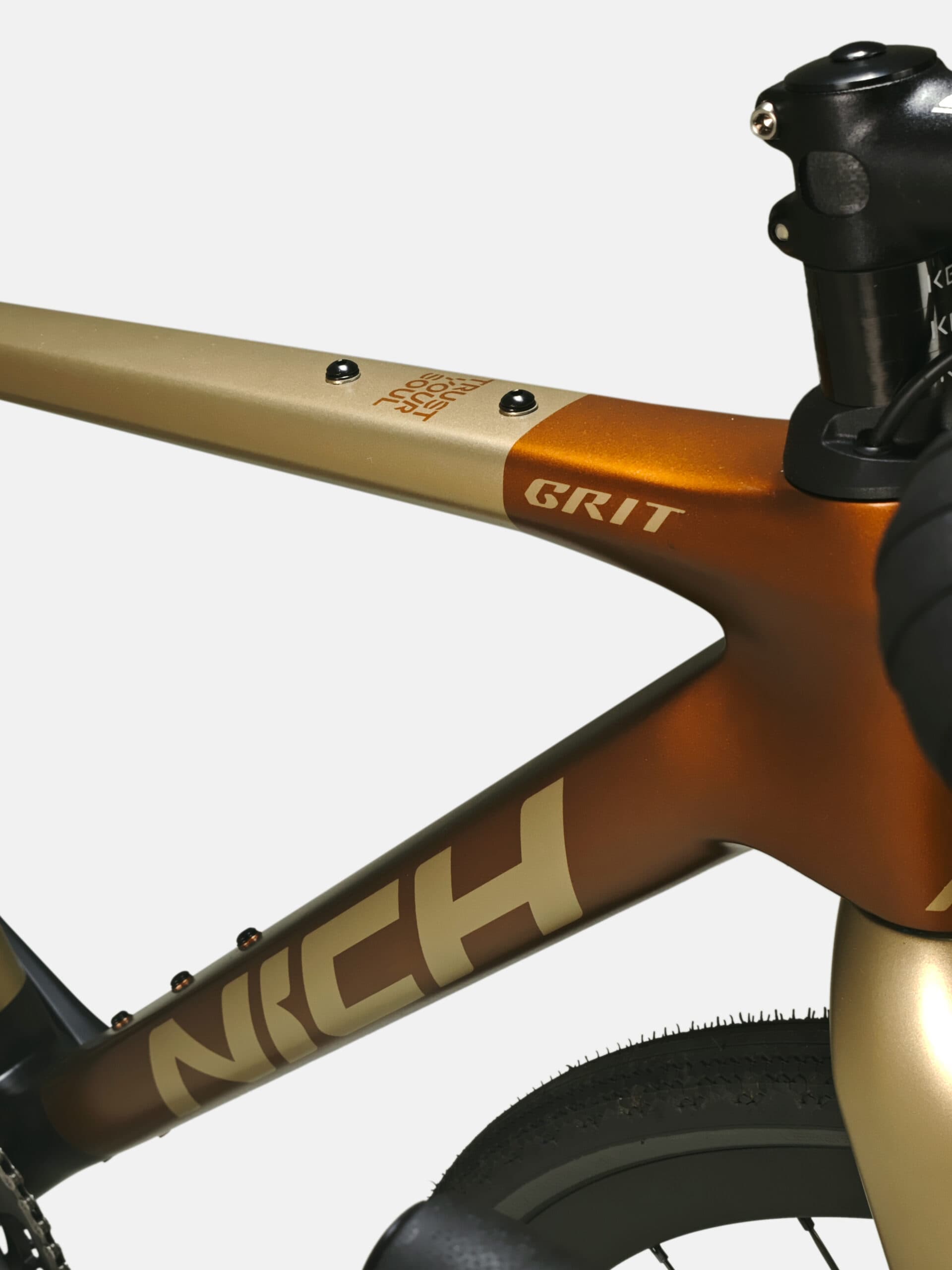

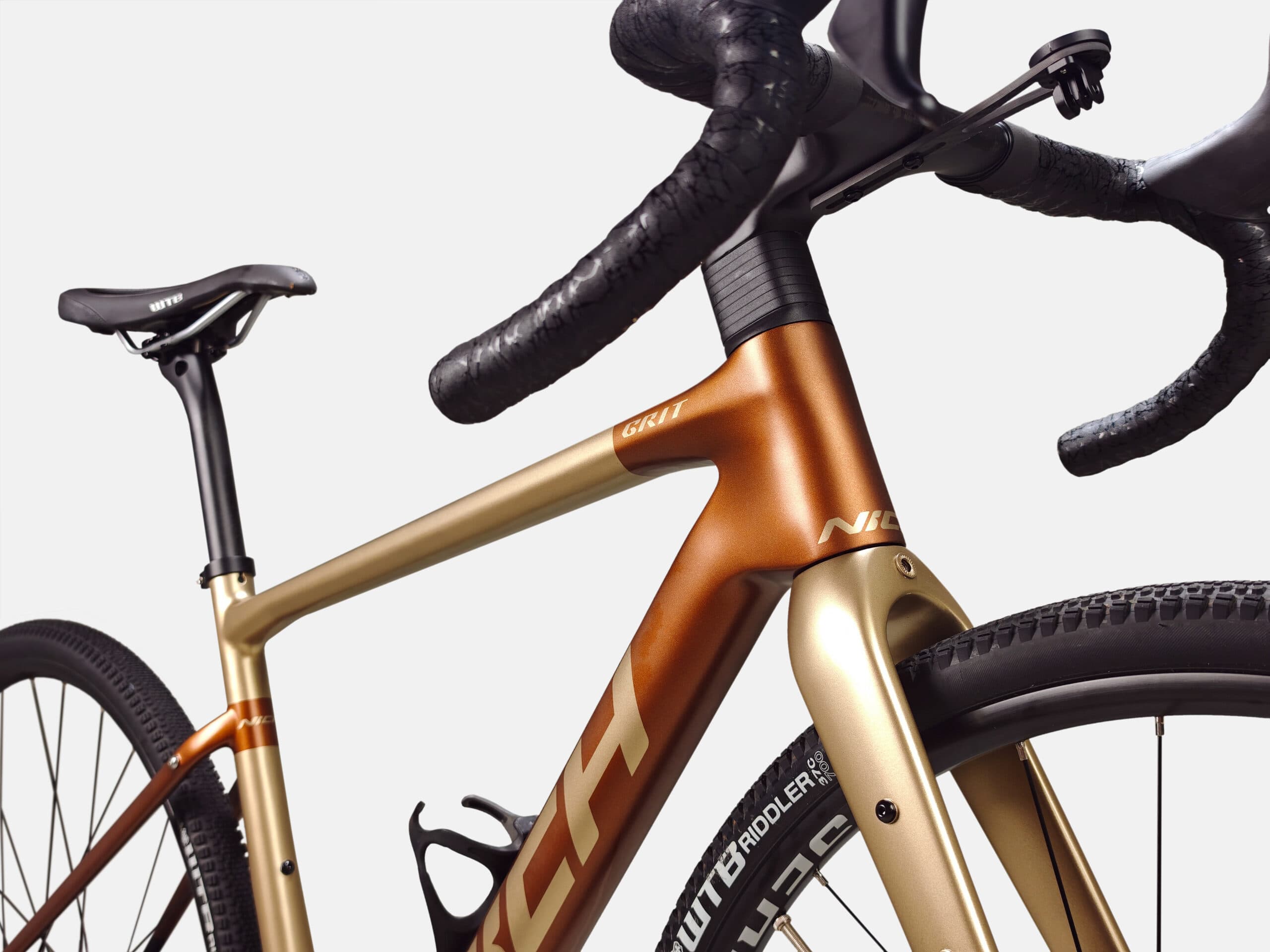

- Re-engineered Head Tube

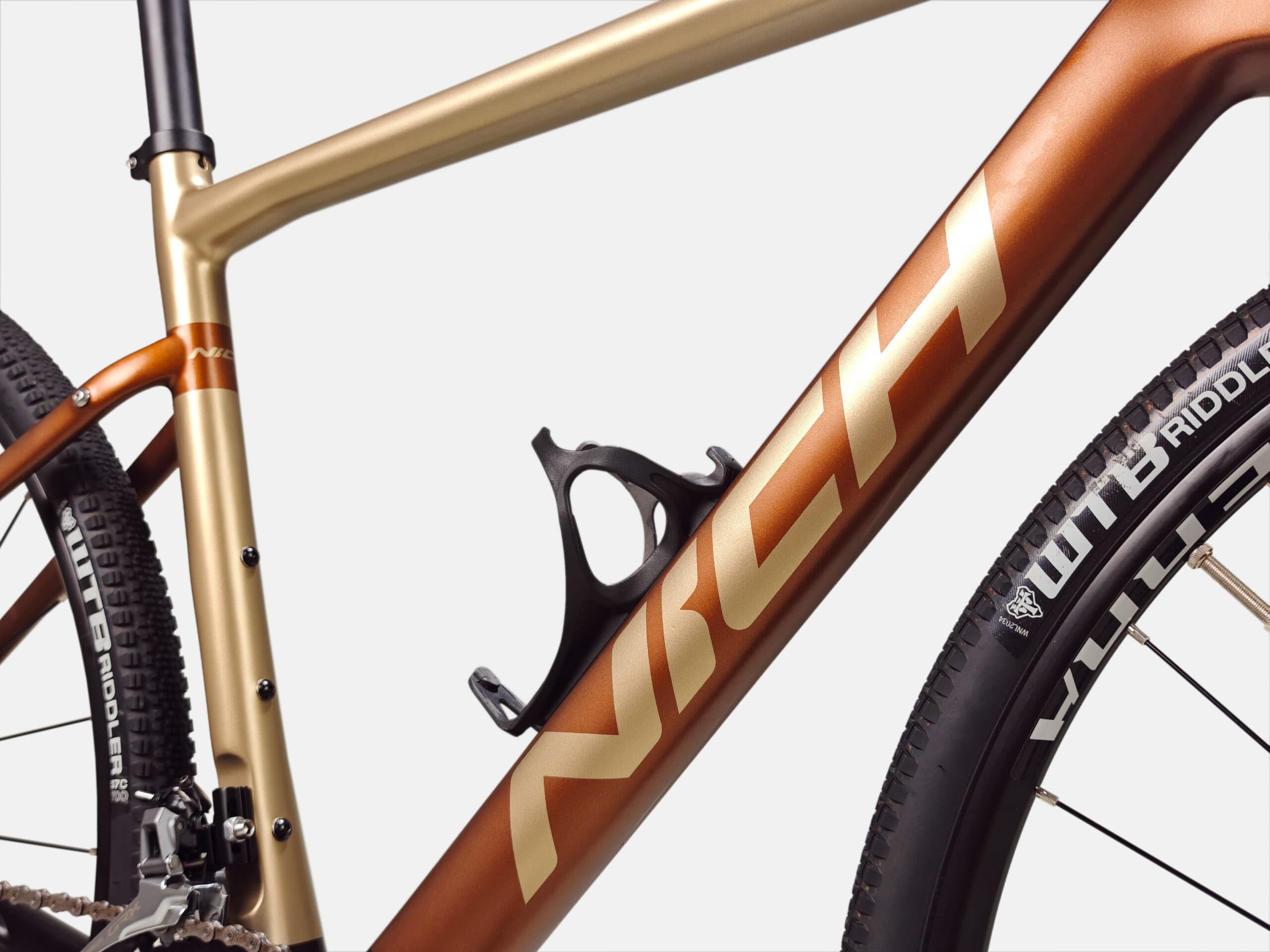

- Carbon Frame Construction — Lightweight yet strong
- Balanced Geometry — Control and stability on rough terrain
- T47 Bottom Bracket — Stiff, durable, easy to service
- UDH System — Universal Derailleur Hanger
- Internal Cable Routing
- Full Rack & Fender Mounts — Ready for bikepacking

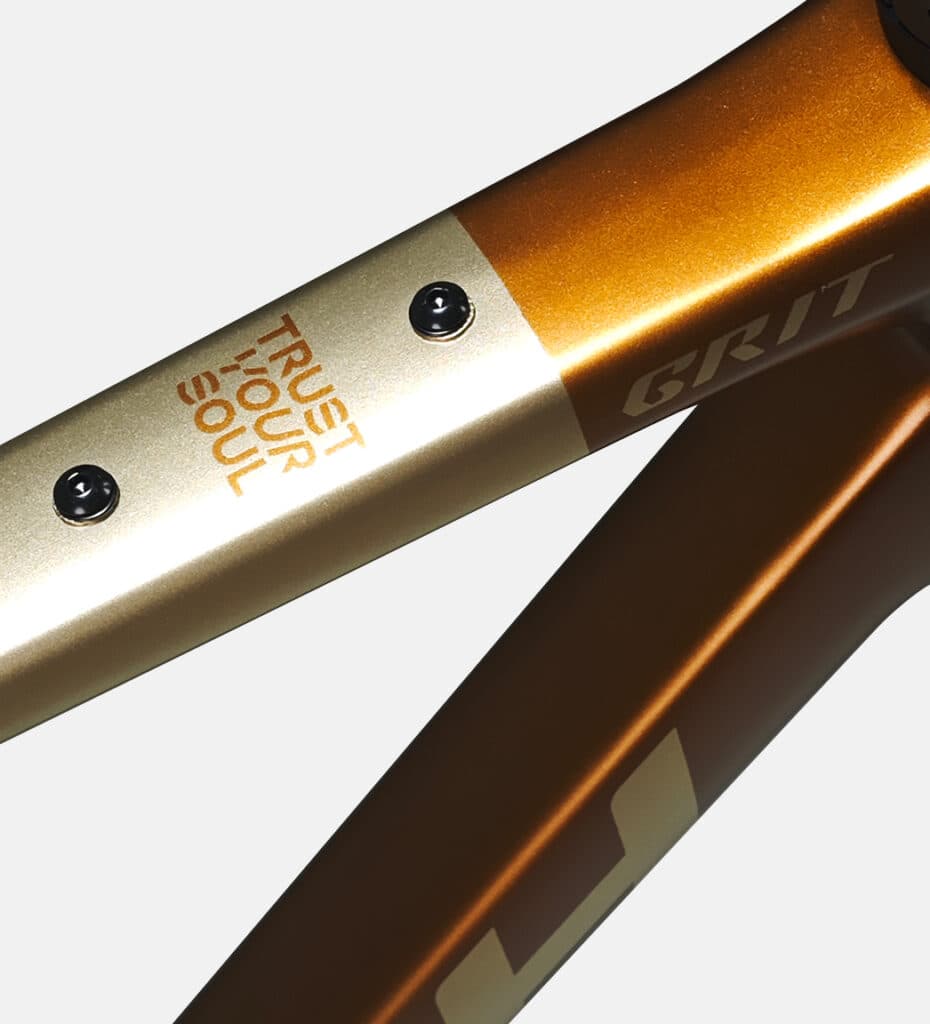

Mold & UDH System
Advanced Molding Techniques — Monocoque construction method. Hand-Assembled Perfection. UDH Rear Hanger System.

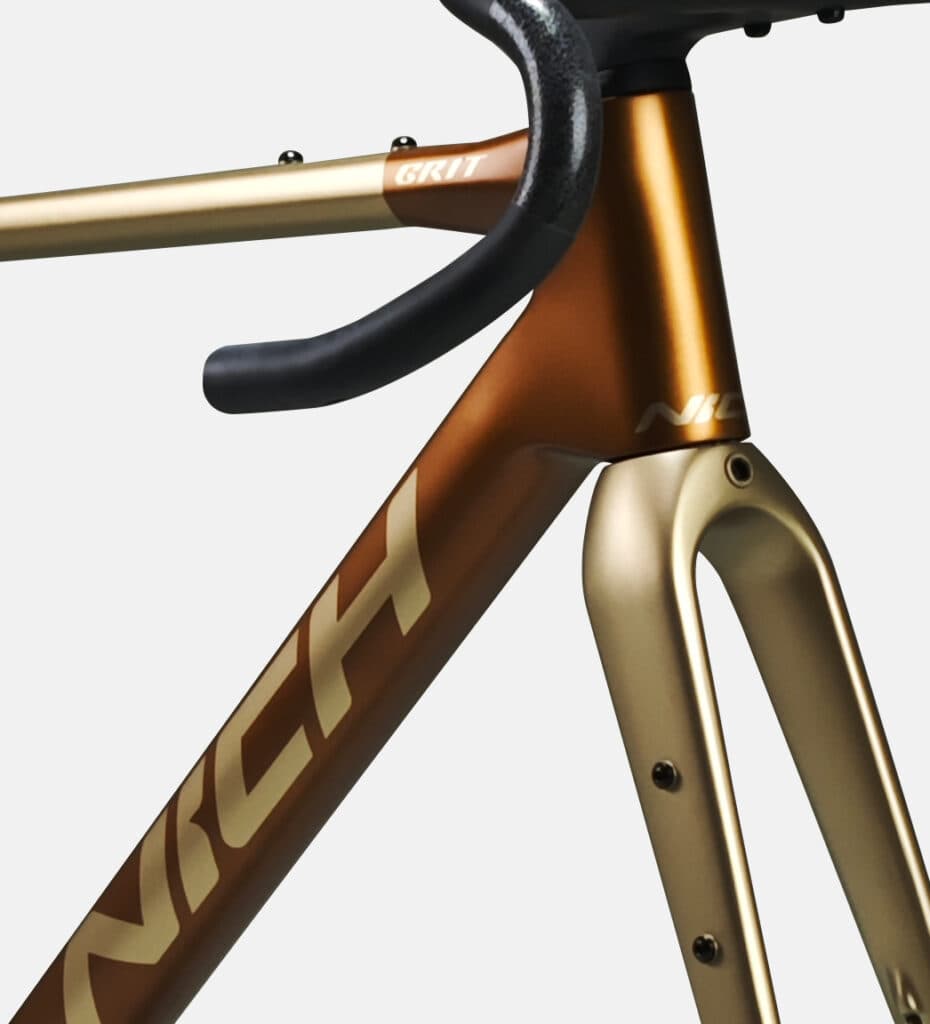

Rider Experience
Built for riders who crave versatility and all-day comfort on any surface.
- Supports wide tires up to 50mm
- Fully customizable builds

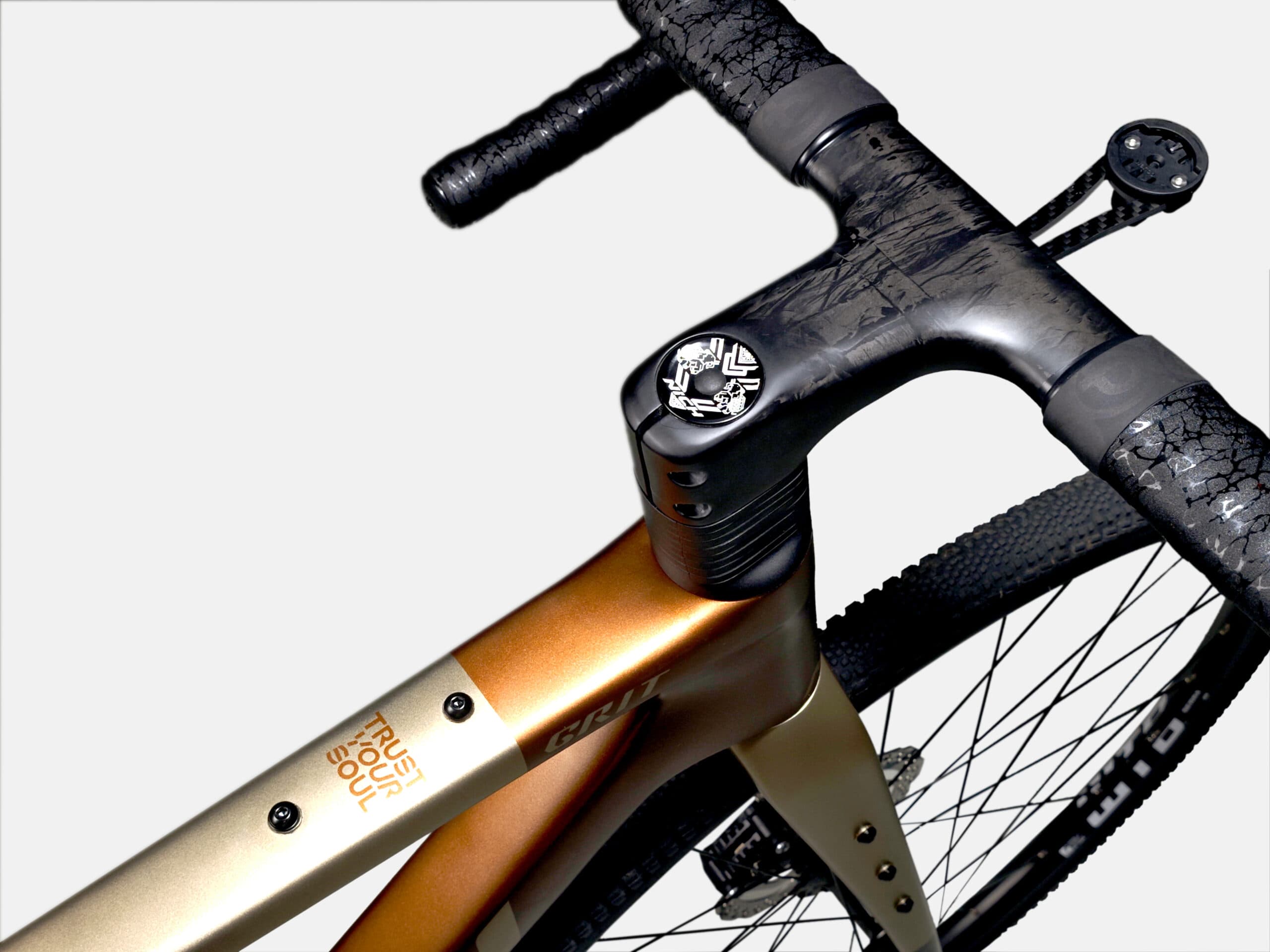

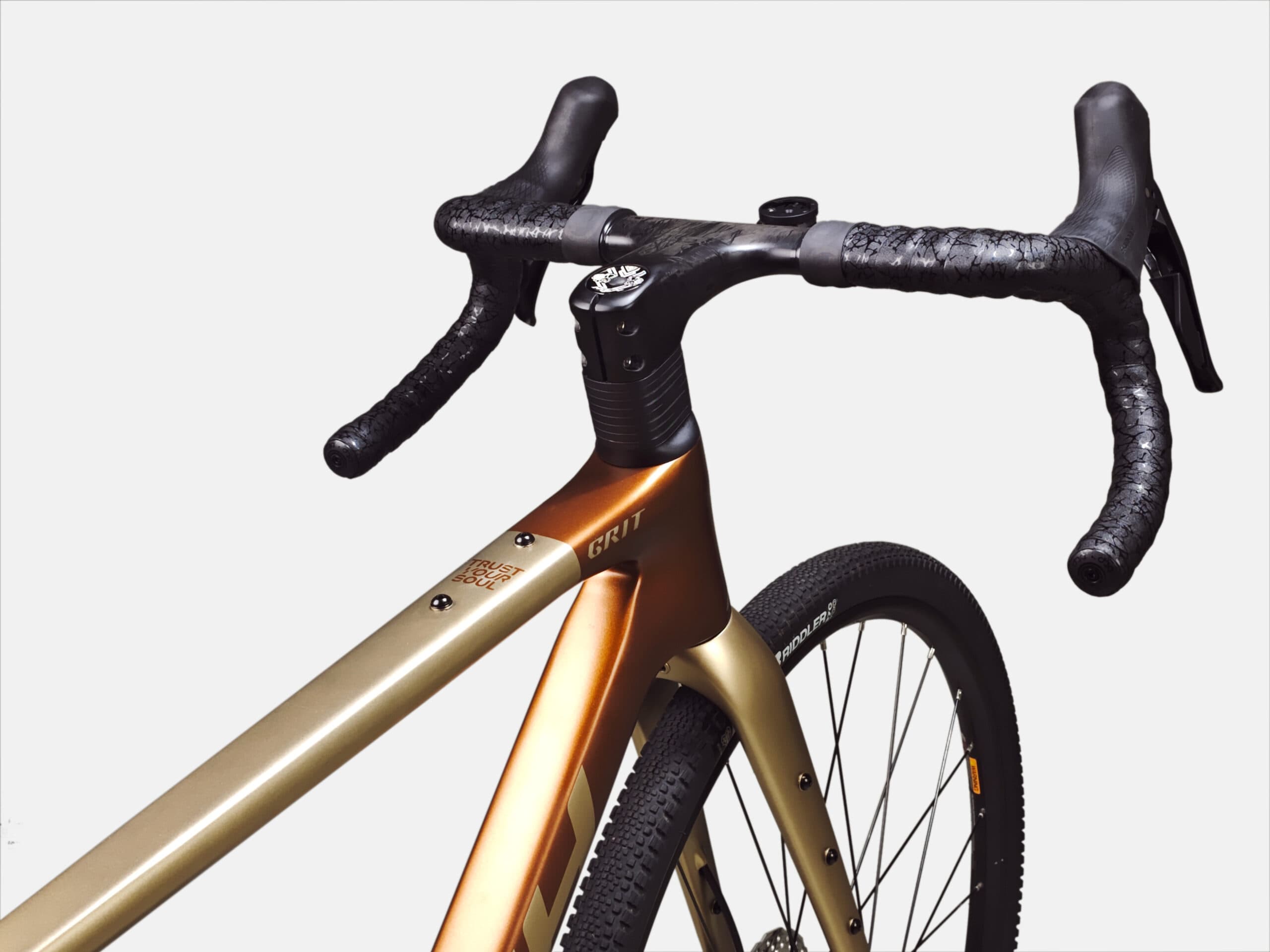

- Comfortable KEYS carbon gravel handlebar
- Ready for mixed-surface adventures

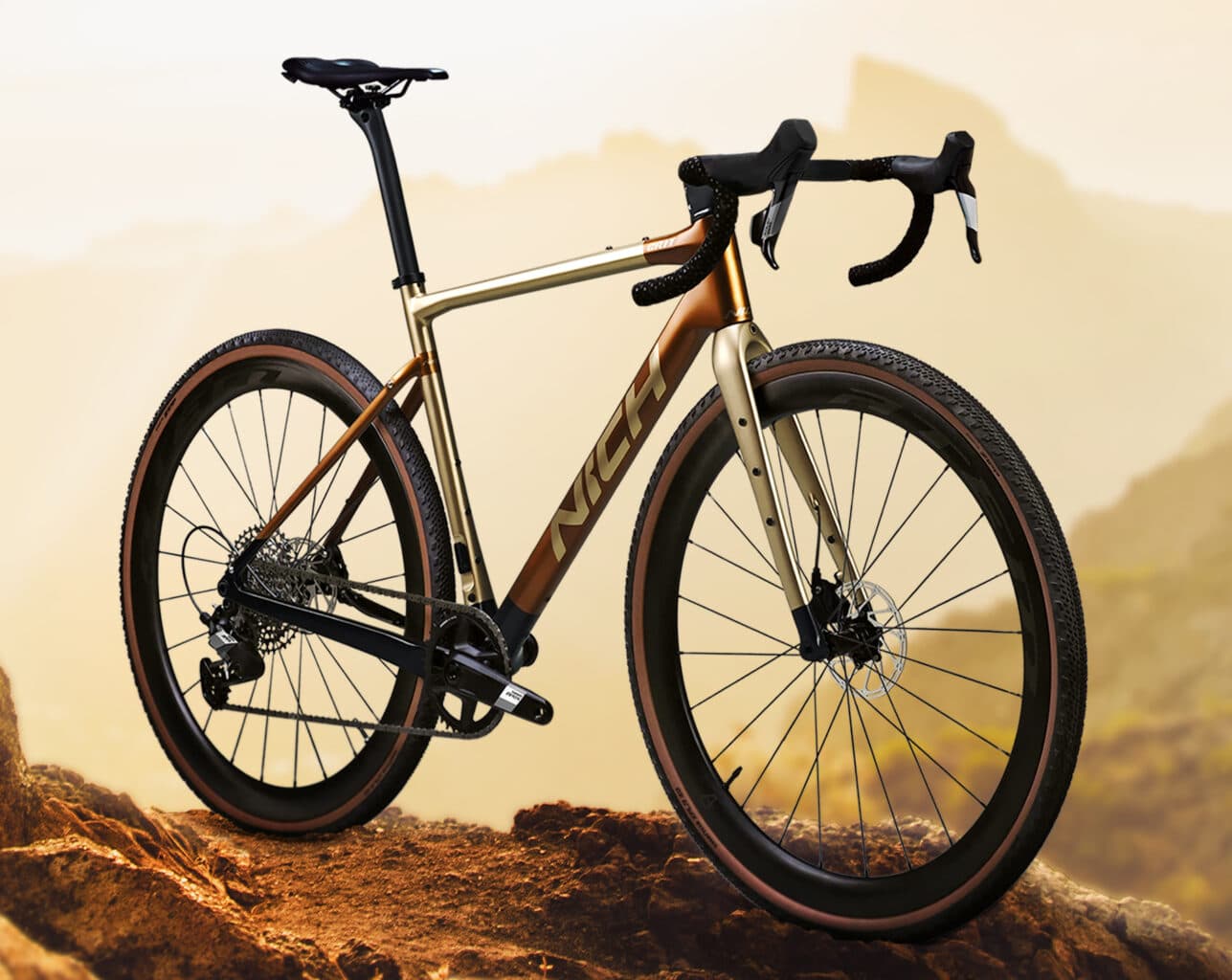

Customize Your Ride
Choose between 1x or 2x chainring setups. 27.2mm carbon seatpost included, compatible with aftermarket dropper posts.

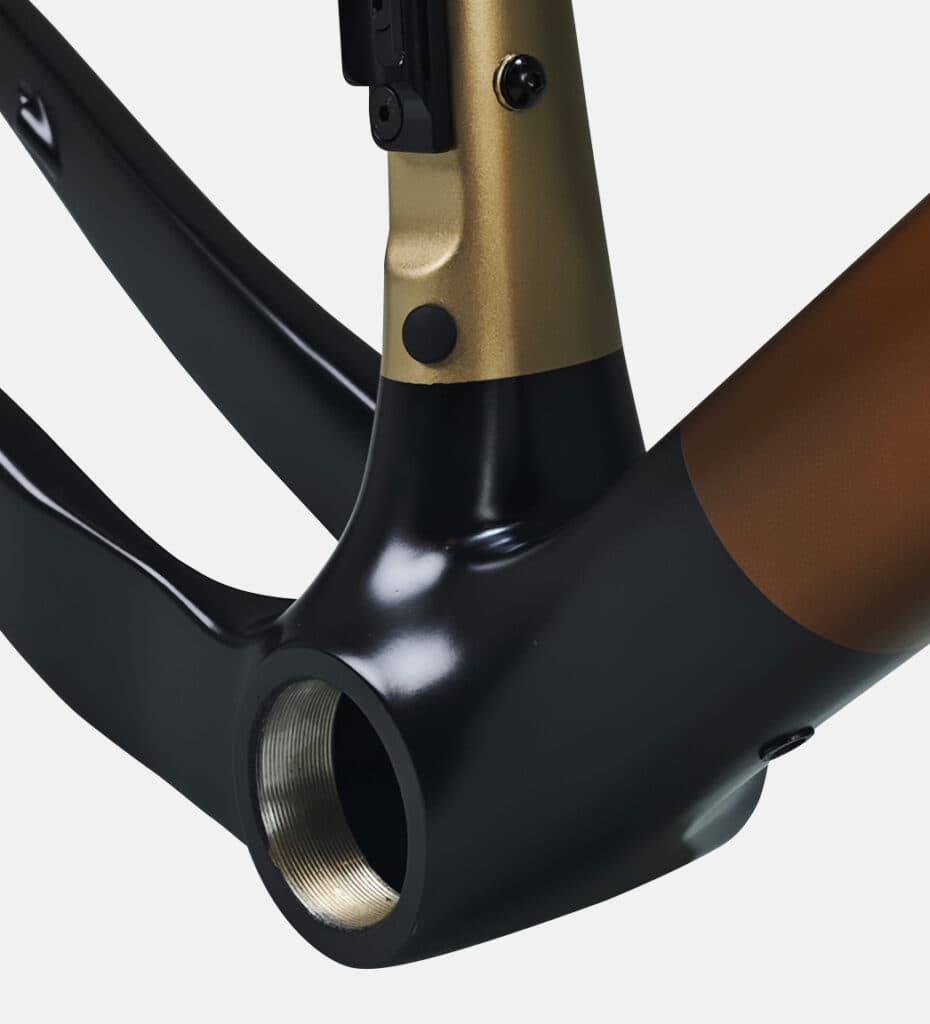

Carbon Fiber Layup
Torayca Carbon Fiber Construction — Toray 800 base material, strategically blended with various other carbon fiber grades.
Technical Details
| Frame Material | Carbon Gravel Bike |

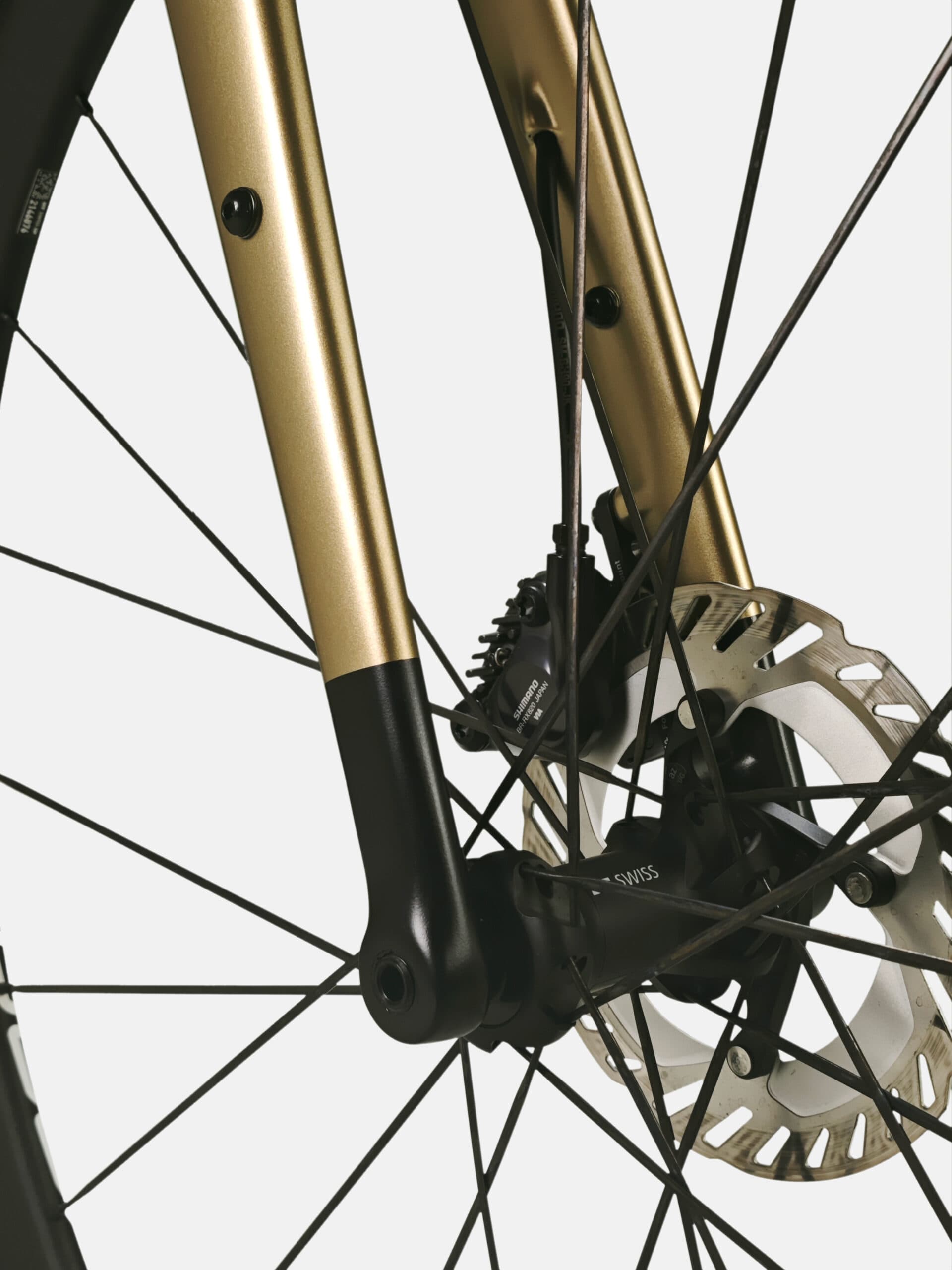

| Fork | Full Carbon Toray 800 |
| System | Mechanic cable and Electric gearset |
| Seatpost | Carbon, 15mm offset |

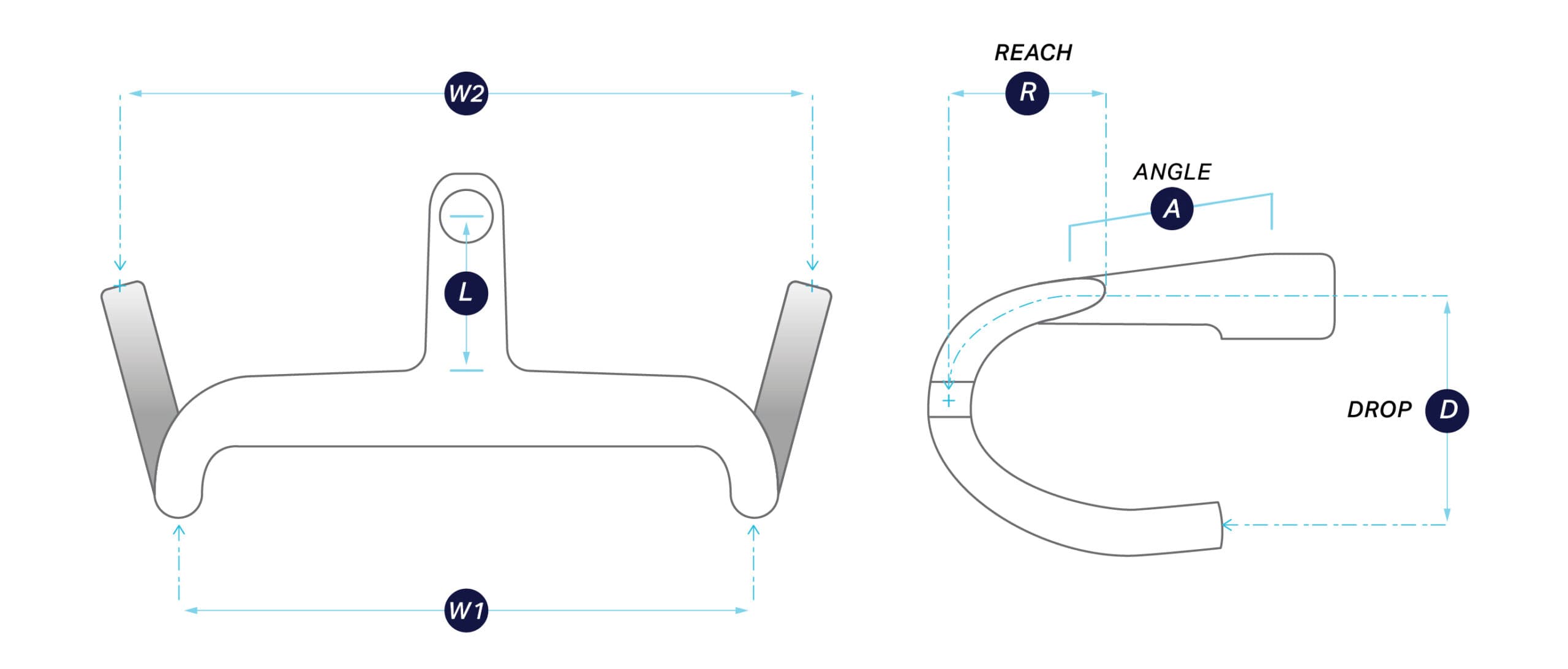

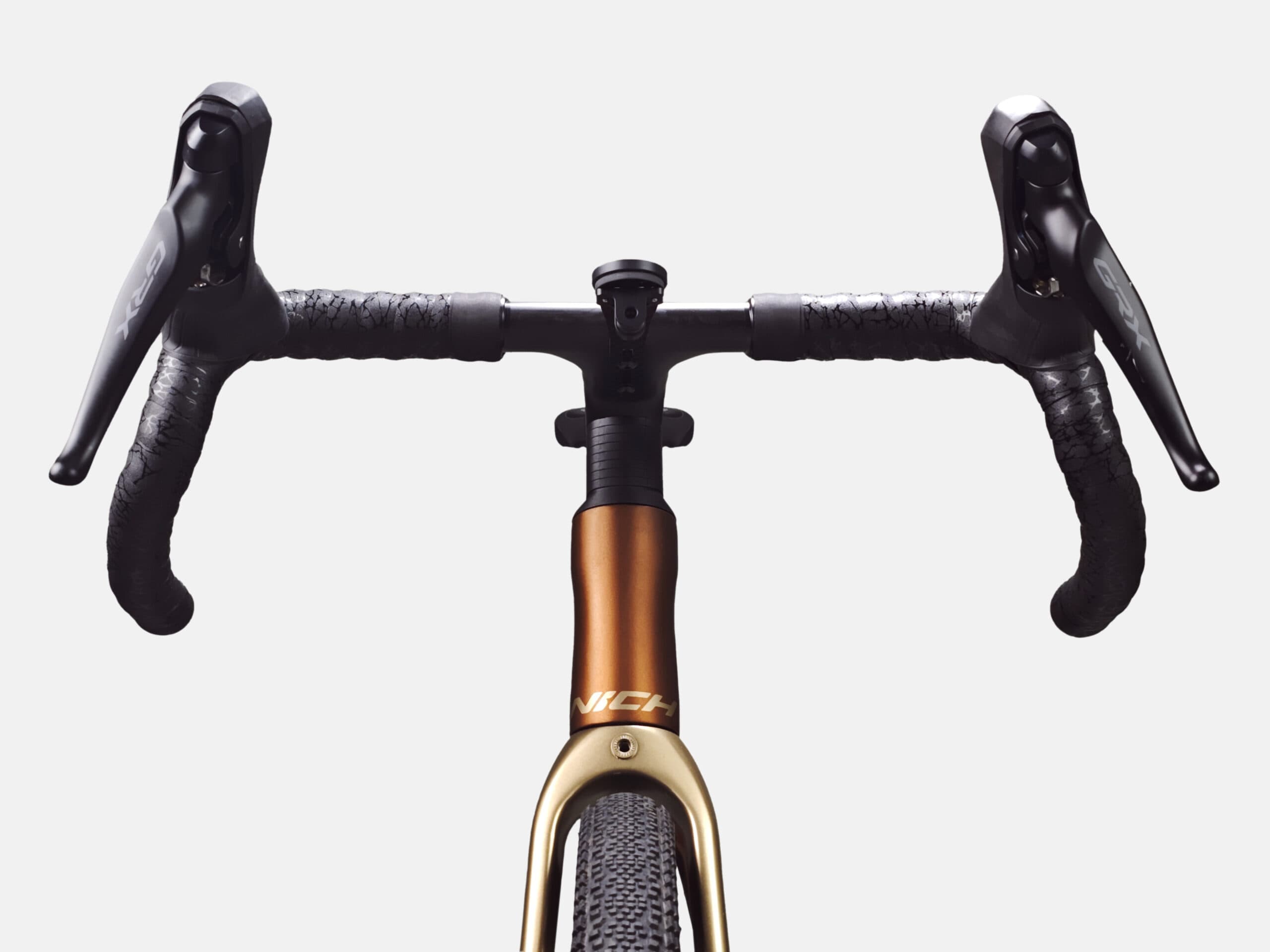

| Handlebar | KEYS Gravel Carbon Integrated Stem |
| Derailleur | UDH |
| Thru-Axle | Front 100xM12x1.5 / Rear 142xM12x1.0 (UDH) |
| Headset | Upper 1-1/2″ Lower 1-1/2″ |
| Bottom Bracket | T47 |
| Frame Weight | 935 grams (Size S, painted) + 134g (bolts and parts) |
| Handlebar Weight | 370 grams |
| Fork Weight | 488 grams (uncut fork steer) |
| Seatpost Size, Weight | 27.2mm, 210 grams |
| Max Tire Width | 700×50mm |
| Color Options | Gold on Brown |

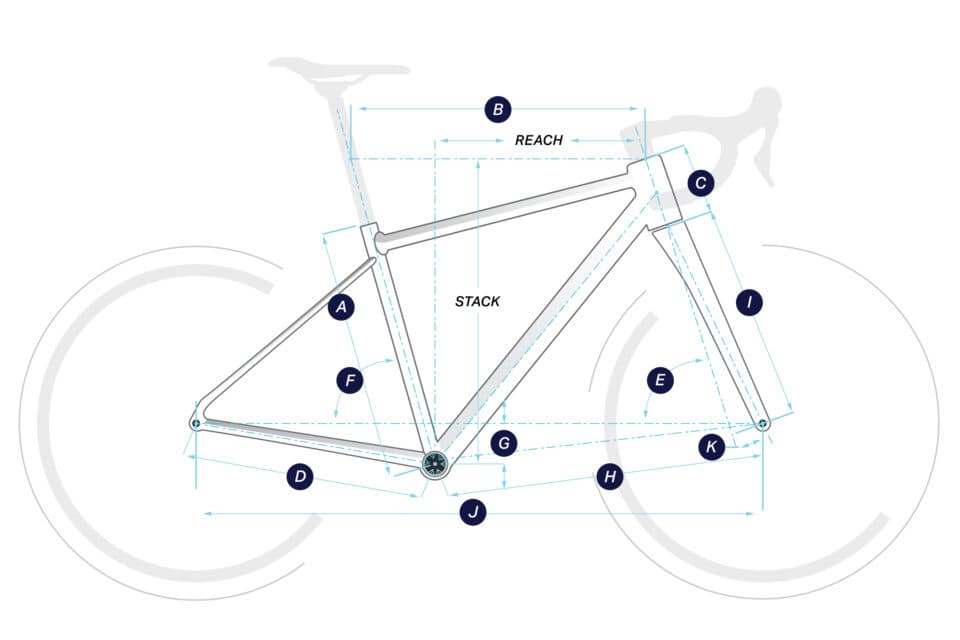

Frame Sizing
| Frame Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Rider Height | 156-166 | 166-176 | 172-182 | 176-186 | 184> |
| ST Length (A) | 460 | 480 | 510 | 535 | 560 |
| ETT Length (B) | 520 | 540 | 555 | 570 | 590 |
| HT Length (C) | 100 | 115 | 130 | 150 | 180 |
| Chain Stay (D) | 435 | 435 | 435 | 435 | 435 |
| HT Angle (E) | 71° | 71.5° | 72° | 72° | 72° |
| ST Angle (F) | 74.5° | 74° | 73.5° | 73° | 73° |
| BB Drop (G) | 76 | 76 | 76 | 76 | 76 |
| Front Center (H) | 590 | 600 | 606 | 615 | 636 |
| Fork Length (I) | 402 | 402 | 402 | 402 | 402 |
| Wheelbase (J) | 1003 | 1014 | 1019 | 1029 | 1050 |
| Fork Offset (K) | 52 | 52 | 52 | 52 | 52 |
| Reach | 372 | 382 | 387 | 390 | 402 |
| Stack | 534 | 550 | 566 | 585 | 613 |
In Detail
Questions
The Grit offers Torayca T800 carbon and 50mm tyre clearance at a competitive direct-to-consumer price, while the Cervélo Áspero retails from approximately $18,000 NZD. The Grit includes T47 bottom bracket, UDH, and full rack and fender mounts. Contact us for current pricing.
The Grit supports both mechanical and electronic groupsets. Compatible with Shimano and SRAM options including 1x and 2x chainring setups for maximum versatility.
Approximately 7 days from Bangkok via Singapore to Auckland, plus assembly time. We'll keep you updated at every stage of the process.
Yes. Contact Kevin to arrange a test ride in Auckland. No pressure — happy to chat bikes anytime.
Lifetime frame warranty covering manufacturing defects. Components follow Shimano/SRAM global warranty terms.
Yes. NICH offers custom colour options on all models. Contact us to discuss your preferences.
25% deposit via bank transfer or Wise. Balance due on arrival in New Zealand. Contact us to start the process.
